INDUSTRIAL AIRFLOW EQUIPMENT

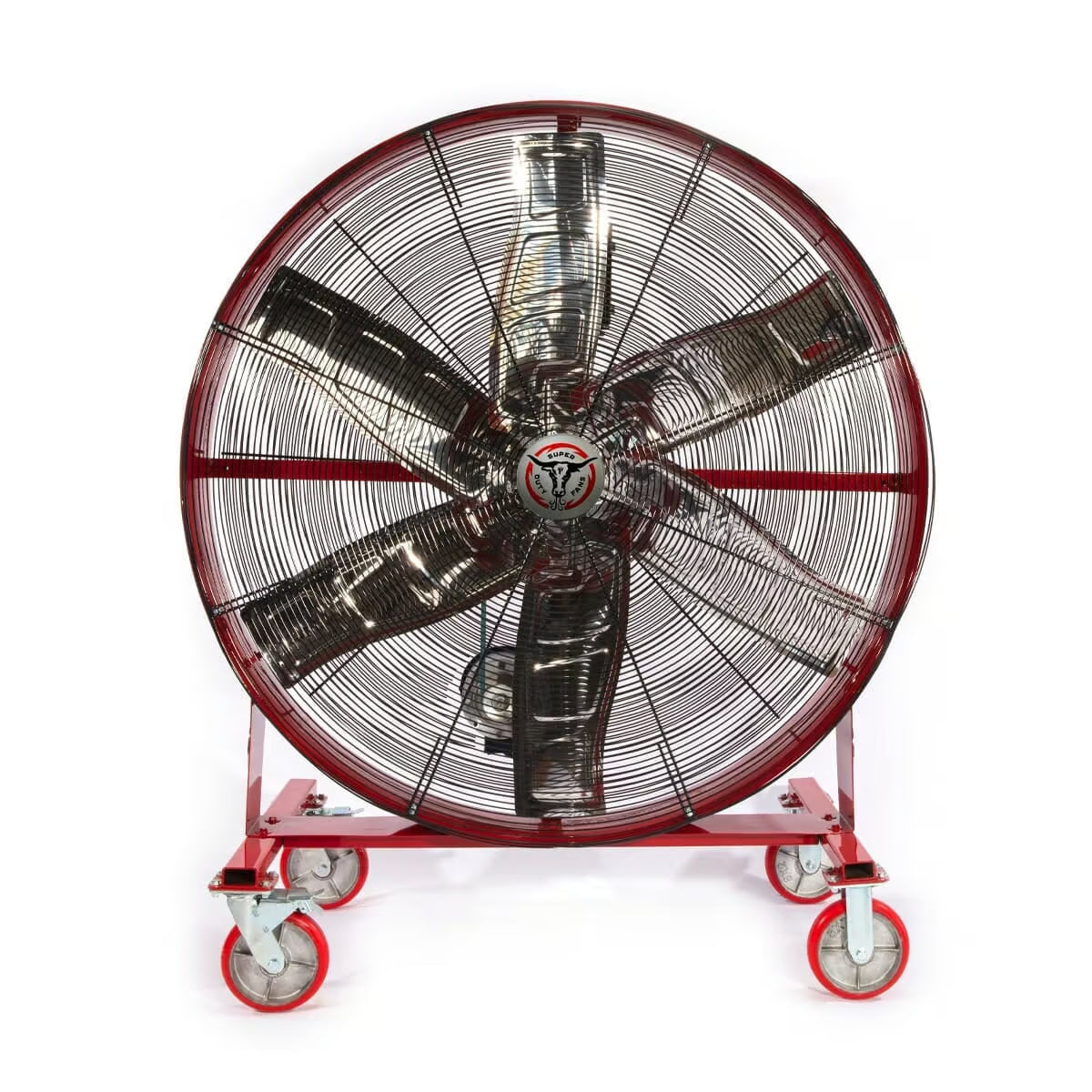

59" Super Duty Floor Fan – SD5VFF Industrial Floor Fan delivers powerful, portable airflow wherever it is needed most. Its totally enclosed 1.5 HP heavy-duty inverter motor and mounted variable-speed controller provide reliable performance and adjustable cooling throughout large industrial facilities.
Directional and locking casters make the fan easy to move, position, and secure in place. OSHA-compliant guarding supports safer operation, while the durable construction is designed to withstand demanding environments with ambient temperatures up to 135°F.
59" Super Duty Floor Fan, 120v or 240v 1P, Variable Speed, 43K CFM, Red.
Product Features
- High-volume directional airflow for demanding work areas
- Built for commercial, agricultural, and industrial circulation needs
- Aims cooling air toward people, equipment, aisles, or production zones
- Rugged configuration designed for practical placement and operation
Quick Specifications
| Weight |
265 lbs |
| Fan Diameter |
59 inches |
| Motor |
1.5 HP / Inverter motor / Class F Insulation / TEFC Industrial Duty / UL |
| Controls |
Variable Speed VFD 115/230VAC (115 Volt input standard) |
| Chassis |
4 heavy-duty casters, 2 fixed, 2 locking and swivel |
| Power Cord |
12’ input lead, 3-wire, 16 gauge, SJOOW, 3-prong plug, UL Listed |
| Blades |
6 Krupp Stainless Steel, balanced, grooved for noise reduction and rigidity, or Red Composite Lineal Distance Blades which throw a high-velocity narrow & long air pattern up to 120′ long |
| Shroud |
Steel formed, powder-coated red |
| Noise Level |
43.4 DB (taken 20’ from fan center) |
| Drive |
Belt drive, cast motor pulley, high-performance Kevlar belt |
| Rated Airflow |
43,000 CFM |
| Configuration |
Floor fan |
| Finish |
Red |
| Model / SKU |
SD5VFF |
Where This Fan Works Best
Best forWarehouses, fabrication shops, service bays, manufacturing areas, barns, agricultural buildings, loading areas, and other hot or poorly circulated workspaces.
Plan before orderingVerify ceiling height, mounting structure, electrical service, required coverage, and final fan placement.
Why Buy From AIMS Airflow?
Fan selection helpMatch fan size, airflow, mounting style, and controls to the space.
Installation coordinationCoordinate installation requirements and nationwide project support.
Support after the saleGet help with parts, service questions, and equipment support.
Questions about ceiling height, electrical input, mounting, or coverage? Contact AIMS Airflow before ordering.
Frequently asked questions
What airflow does the SD5VFF provide?
The SD5VFF is listed at 43,000 CFM, making it a high-volume directional option for cooling people, equipment, aisles, and active work areas.
How is the SD5VFF configured for placement?
The SD5VFF is built as a floor fan. This configuration helps direct airflow where it is needed while keeping installation appropriate to the work area.
What electrical and speed configuration comes with the SD5VFF?
This model is listed for 120V or 220V, single-phase, with variable speed. Confirm the ordered voltage and control method with AIMS Airflow.
Installation planning noteVerify electrical requirements, mounting conditions, clearances, and final product configuration with AIMS Airflow before installation.
