INDUSTRIAL AIRFLOW EQUIPMENT
48" Super Duty Floor Fan – SD4VFF puts high-volume air where crews, equipment, or work zones need it most. The directional design makes it a practical cooling and circulation solution for shops, manufacturing areas, warehouses, barns, service bays, and other demanding spaces.

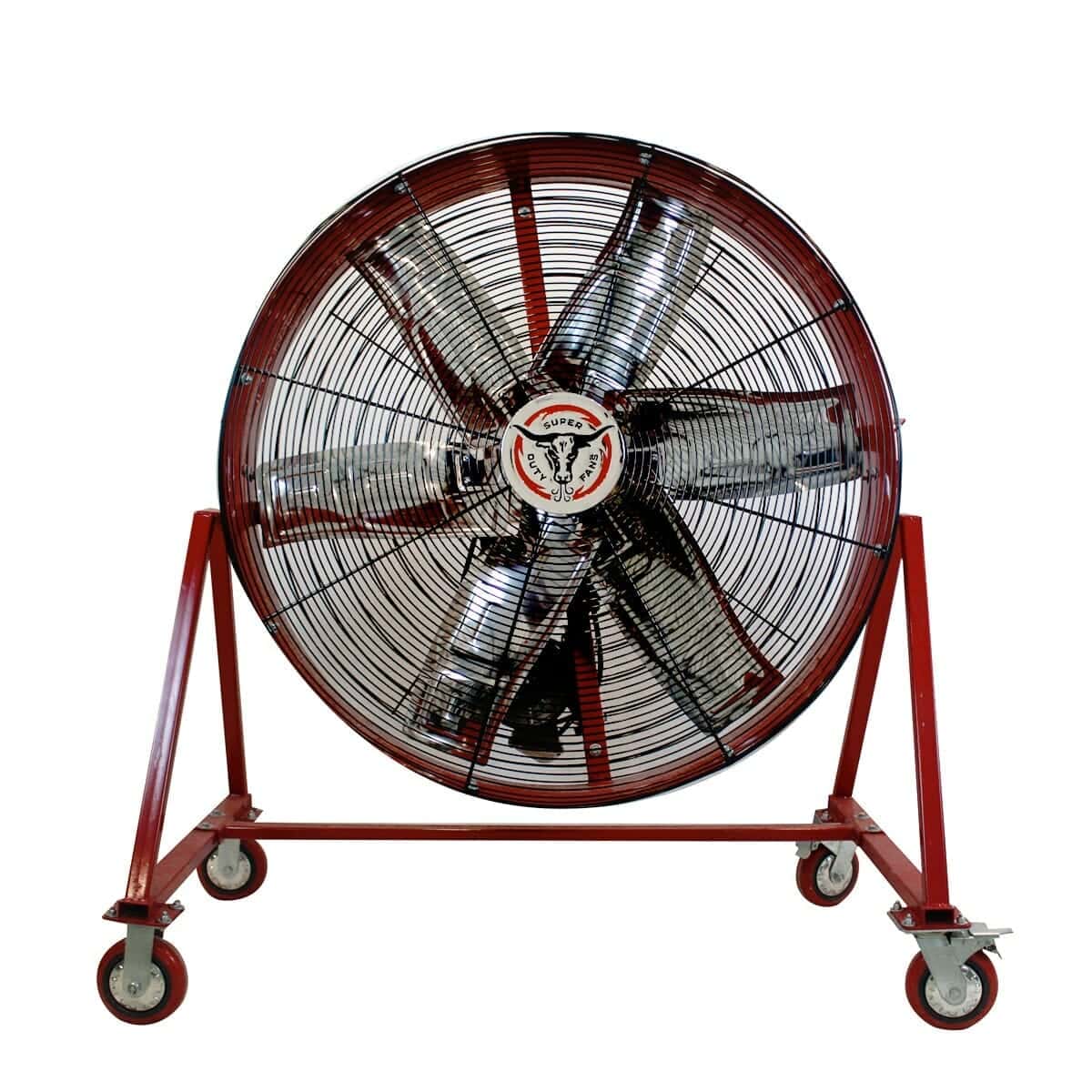

48" Super Duty Floor Fan, 120v or 240v 1P, Variable Speed, 31K CFM, Red.
Product Features
- High-volume directional airflow for demanding work areas
- Built for commercial, agricultural, and industrial circulation needs
- Aims cooling air toward people, equipment, aisles, or production zones
- Rugged configuration designed for practical placement and operation
Quick Specifications
| Fan diameter |
48 inches Floor Fan |

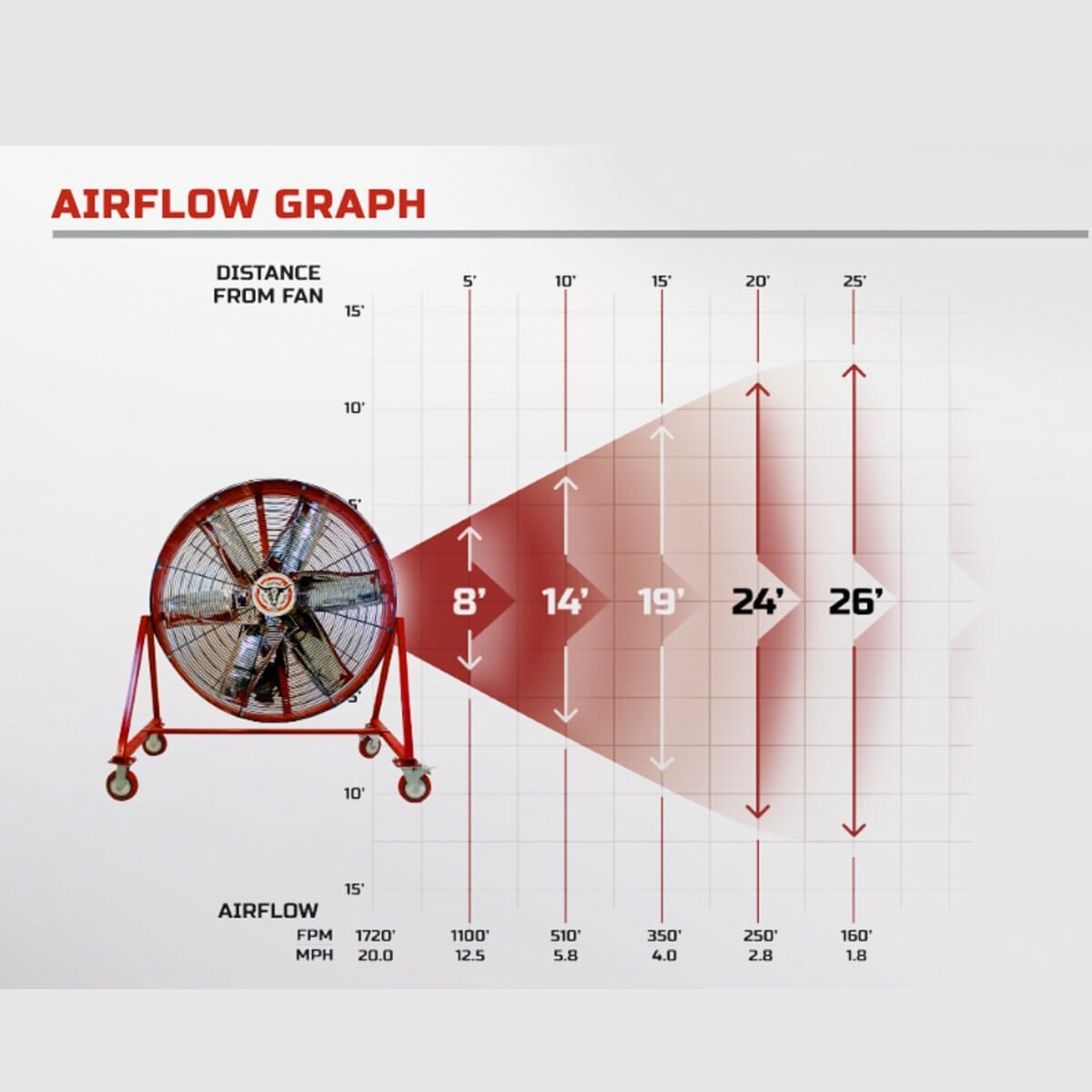

| Airflow |
22,000 CFM (CFM ratings are derived from Fluid Dynamics Software Analysis and are currently pending testing for new industry standards. Contact us for further information.) |
| Motor |
1.5 HP Inverter Motor TEFC |
| Speed control |
Digital VFD Controller included with Variable Speed |
| Mobilty |
4 wheels with 2 locking/swivel |
| Power Cord |
110V with 10' power cord |
| Tilt |
30 degrees up or down |
| Drive |
Quiet belt drive system |
| Clearance |
28" wide for door clearances |
| Finish |
Red |
| Model / SKU |
SD4VFF |
| Power Cord |
110V with 10' power cord |
| Drive |
Quiet belt drive system |
Where This Fan Works Best
Best forWarehouses, fabrication shops, service bays, manufacturing areas, barns, agricultural buildings, loading areas, and other hot or poorly circulated workspaces.
Plan before orderingVerify ceiling height, mounting structure, electrical service, required coverage, and final fan placement.
Why Buy From AIMS Airflow?
Fan selection helpMatch fan size, airflow, mounting style, and controls to the space.
Installation coordinationCoordinate installation requirements and nationwide project support.
Support after the saleGet help with parts, service questions, and equipment support.
Questions about ceiling height, electrical input, mounting, or coverage? Contact AIMS Airflow before ordering.
Frequently asked questions
What airflow does the SD4VFF provide?
The SD4VFF is listed at 31,000 CFM, making it a high-volume directional option for cooling people, equipment, aisles, and active work areas.
How is the SD4VFF configured for placement?
The SD4VFF is built as a floor fan. This configuration helps direct airflow where it is needed while keeping installation appropriate to the work area.
What electrical and speed configuration comes with the SD4VFF?
This model is listed for 120V OR 240V, single phase, with variable speed. Confirm the ordered voltage and control method with AIMS Airflow.
Installation planning noteVerify electrical requirements, mounting conditions, clearances, and final product configuration with AIMS Airflow before installation.
