INDUSTRIAL AIRFLOW EQUIPMENT
The Tex Twister 36 is a large wall-mounted industrial fan designed to sweep high-volume airflow across wider work areas without occupying valuable floor space. Its piston-driven oscillation system continually redirects the fan's 9,400 CFM output, making it well suited to service bays, warehouses, manufacturing areas, and agricultural buildings that need broad, repeating air coverage.

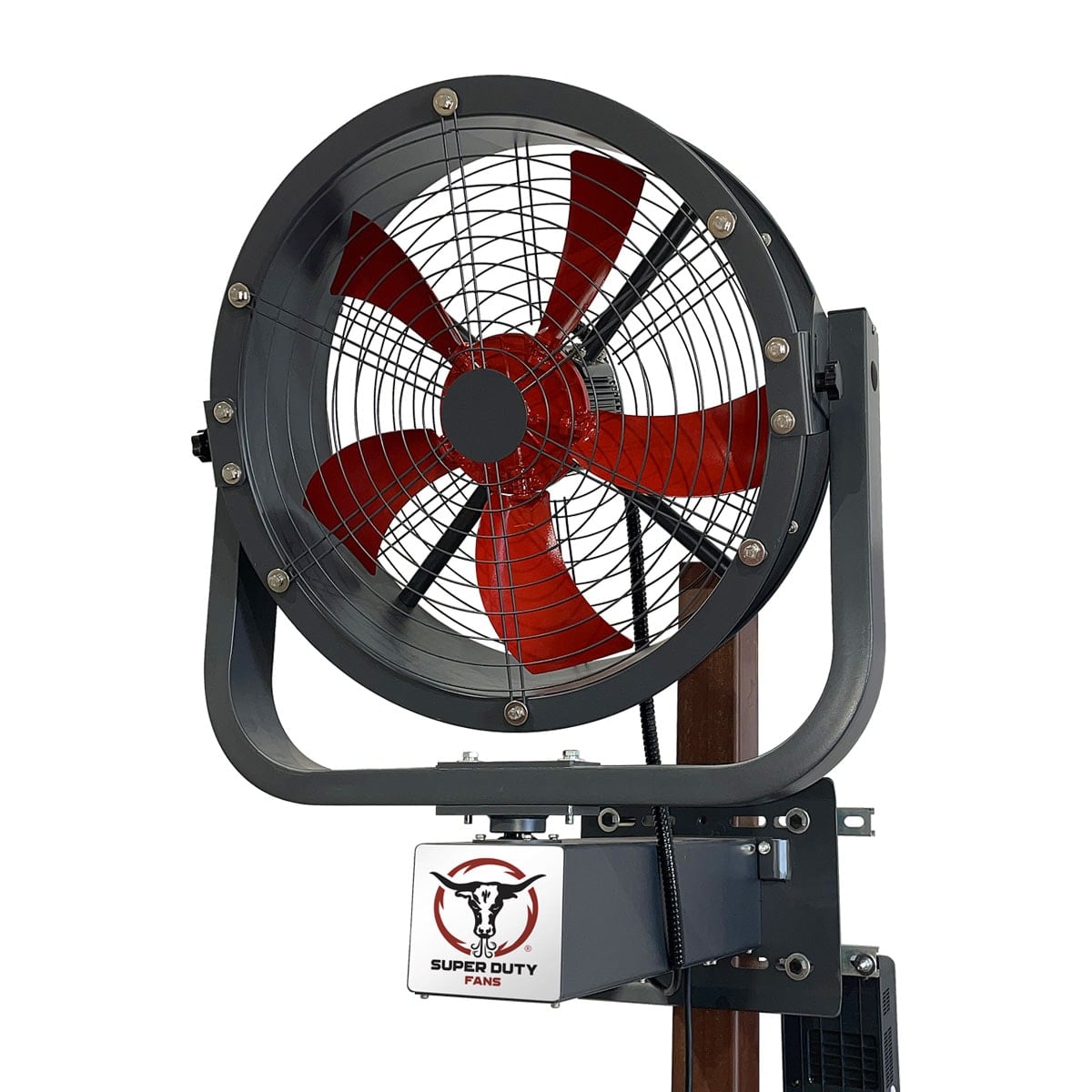

Tex Twister 36 Oscillating Wall Fan with piston-driven oscillation and 9,400 CFM rated airflow.
Product Features
- High-volume directional airflow for demanding work areas
- Built for commercial, agricultural, and industrial circulation needs
- Aims cooling air toward people, equipment, aisles, or production zones
- Rugged configuration designed for practical placement and operation
Quick Specifications
| Rated Airflow |
9400 CFM |
| Motor |
3/4 HP |
| Controls |
VFD with Variable Speed |
| Weight |
73 lbs |
| Oscillation |
80° |
| Tilt |
30° up or down |
| Drive System |
Direct drive motor |
| Blades |
5 composite blades |
| Safety Rating |
IP 54 |
| RPM |
750 RPM |
| Configuration |
Wall-mounted oscillating fan |
| Model / SKU |
TEX-TWISTER-36 |
Where This Fan Works Best
Best for
Warehouses, fabrication shops, service bays, manufacturing areas, barns, agricultural buildings, loading areas, and other hot or poorly circulated workspaces.
Plan before ordering
Verify ceiling height, mounting structure, electrical service, required coverage, and final fan placement.
Why Buy From AIMS Airflow?
Fan selection helpMatch fan size, airflow, mounting style, and controls to the space.
Installation coordinationCoordinate installation requirements and nationwide project support.
Support after the saleGet help with parts, service questions, and equipment support.
Questions about ceiling height, electrical input, mounting, or coverage? Contact AIMS Airflow before ordering.
Frequently asked questions
What is the airflow rating of the TEX-TWISTER-36?
The TEX-TWISTER-36 is listed at 9400 CFM. Its wall-mounted oscillating format sweeps that airflow across a broader work area instead of aiming it at one fixed point.
Why choose the wall-mounted TEX-TWISTER-36 instead of a floor fan?
Wall mounting keeps the TEX-TWISTER-36 above carts, tools, and foot traffic while preserving floor space. Its oscillating action is useful where several workstations or a long bay need circulation.
What should be checked before mounting the TEX-TWISTER-36?
Verify that the wall or column can support the fan, confirm oscillation clearance, check the electrical supply, and keep the blade and airflow zones clear. AIMS Airflow can help review placement before installation.
Installation planning noteVerify electrical requirements, mounting conditions, clearances, and final product configuration with AIMS Airflow before installation.
