INDUSTRIAL AIRFLOW EQUIPMENT
The JetBlast 24 is a mobile tube-axial fan built to deliver a wider, gentler column of air across workspaces, shops, patios, decks, and production areas. Its 850W (1.25 HP) totally enclosed direct-drive motor produces up to 7,750 CFM, while the two-wheel pedestal lets the 97-pound fan tilt from a flat position to 90 degrees upward for flexible spot cooling and ventilation.

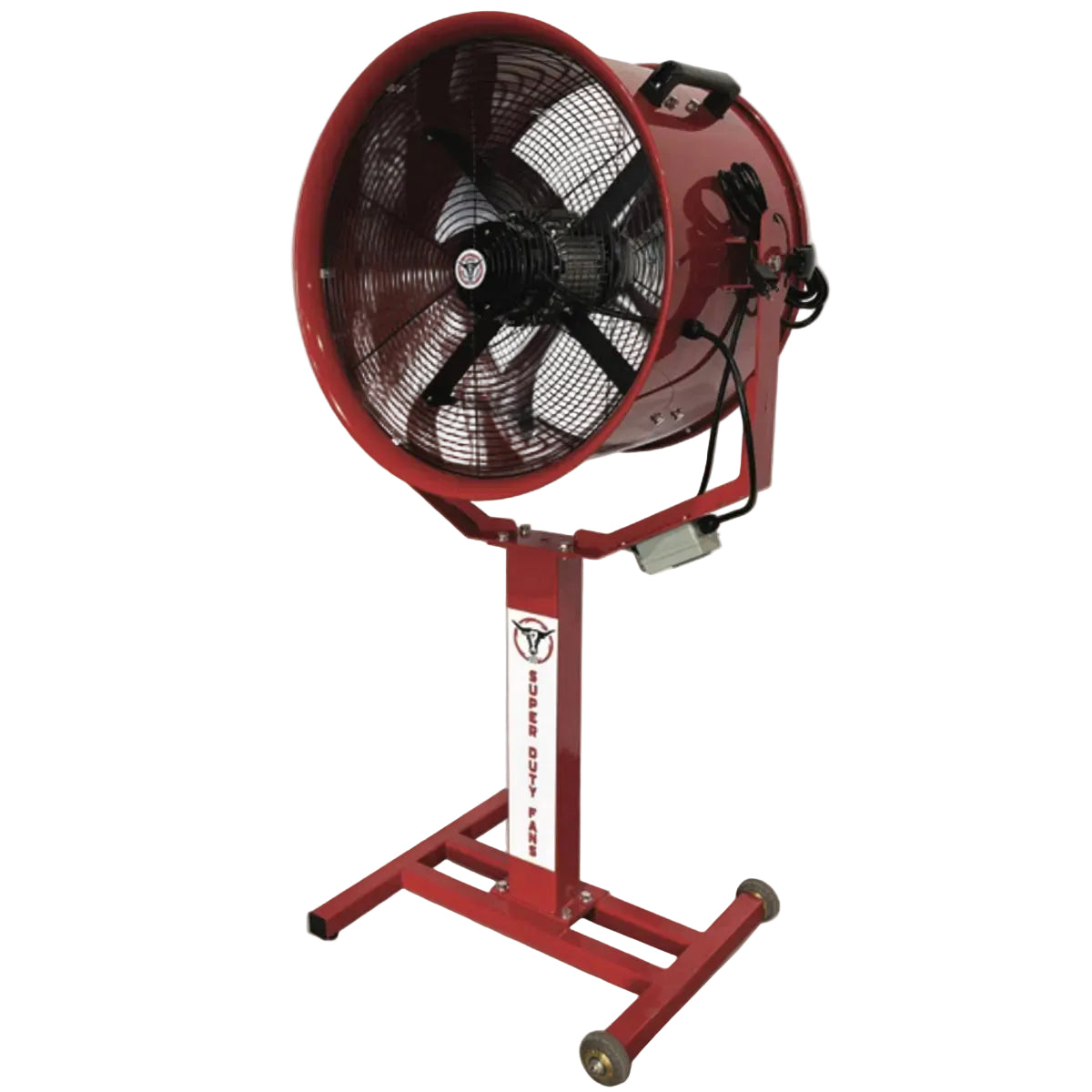

JetBlast 24 Tube Axial Fan, 115V, 8.2 amps, 1,120 RPM, four aggressive-pitch steel blades, and up to 7,750 CFM.
Product Features
- High-volume directional airflow for demanding work areas
- Built for commercial, agricultural, and industrial circulation needs
- Aims cooling air toward people, equipment, aisles, or production zones
- Rugged configuration designed for practical placement and operation
Quick Specifications
| Weight |
97 lbs. |
| Airflow |
7,750 CFM |
| Motor |
850 Watts / 1.25 HP / Direct Drive / TE / 115 Volt / 8.2 Amps |
| Fan Diameter |
24" Diameter |
| Control |
Single Speed |
| Mobility |
2 Wheels |
| Power Cord |
115 Volt / 12’ Cord |
| Drive |
Direct |
| Blade |
4 Steel Blades / Aggressive Pitch / 1120 RPM |
| Power input |
120V |
| Phase |
Single phase |
| Speed control |
Single speed |
| Mounting |
Pedestal stand included |
| Model / SKU |
JETBLAST-24 |
Where This Fan Works Best
Best for
Warehouses, fabrication shops, service bays, manufacturing areas, barns, agricultural buildings, loading areas, and other hot or poorly circulated workspaces.
Plan before ordering
Verify ceiling height, mounting structure, electrical service, required coverage, and final fan placement.
Why Buy From AIMS Airflow?
Fan selection helpMatch fan size, airflow, mounting style, and controls to the space.
Installation coordinationCoordinate installation requirements and nationwide project support.
Support after the saleGet help with parts, service questions, and equipment support.
Questions about ceiling height, electrical input, mounting, or coverage? Contact AIMS Airflow before ordering.
Frequently asked questions
How much focused airflow does the JETBLAST-24 deliver?
The JETBLAST-24 is listed at 7650 CFM. Its tube-axial format concentrates airflow for spot cooling, ventilation, drying, and circulation in targeted work zones.
How is the JETBLAST-24 positioned in a work area?
The JETBLAST-24 includes pedestal stand included, allowing the fan to be placed where directed airflow is needed. Keep intake and discharge areas clear during use.
What power does the JETBLAST-24 require?
The JETBLAST-24 is listed for 120V, single phase, with single speed. Verify the circuit and cord requirements before use.
Installation planning noteVerify electrical requirements, mounting conditions, clearances, and final product configuration with AIMS Airflow before installation.
