The JetBlast 16 is a compact tube-axial fan designed to project a long, narrow column of air through loading docks, warehouse aisles, workstations, and smoke-evacuation areas. Its 900W (1.25 HP) totally enclosed direct-drive motor produces up to 7,500 CFM, and the wheeled pedestal tilts from 45 degrees downward to straight up so airflow can be aimed exactly where it is needed.

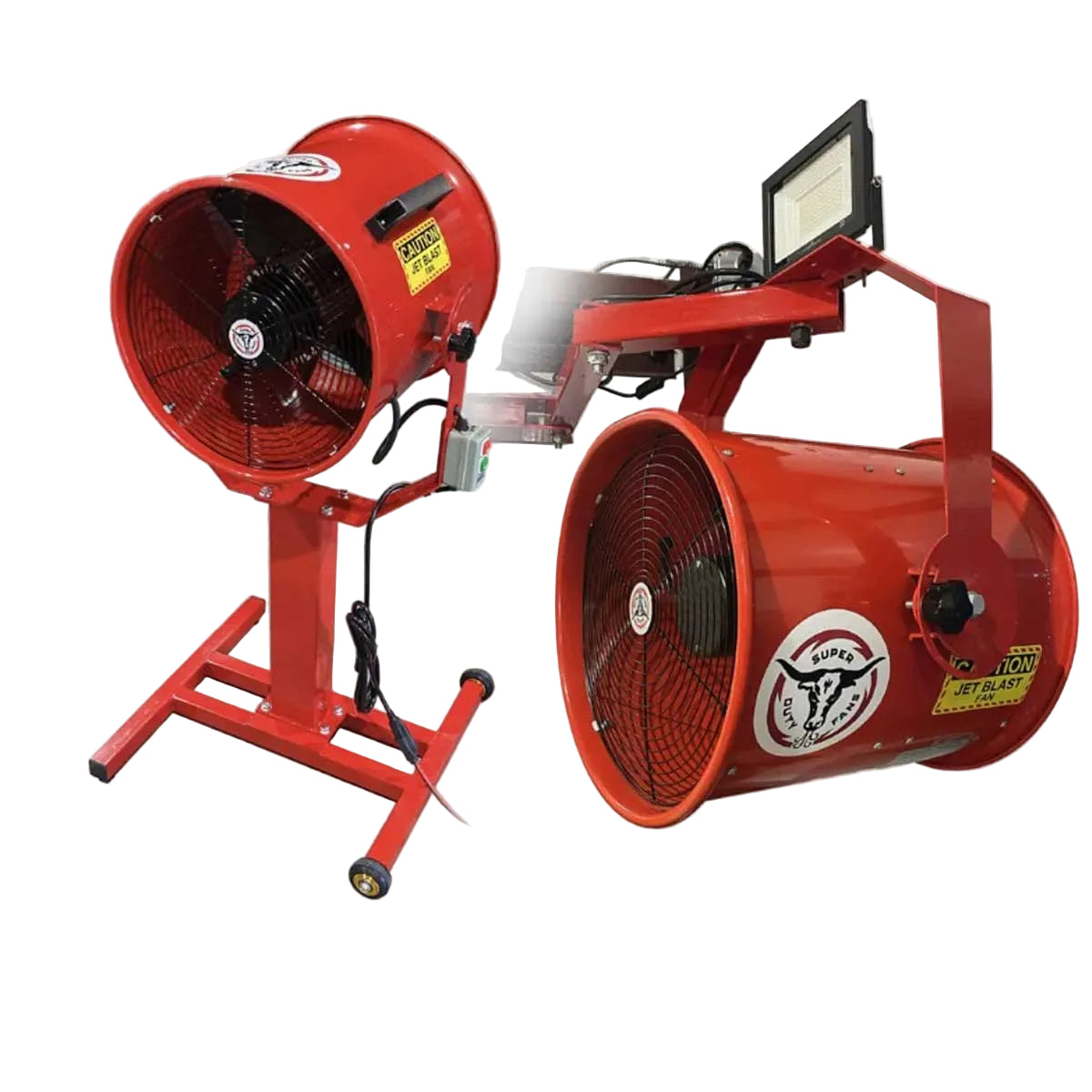

JetBlast 16 Tube Axial Fan, 115V, 8.2 amps, 1,600 RPM, 7-inch aggressive-pitch steel blade, and up to 7,500 CFM.
Product Features
- High-volume directional airflow for demanding work areas
- Built for commercial, agricultural, and industrial circulation needs
- Aims cooling air toward people, equipment, aisles, or production zones
- Rugged configuration designed for practical placement and operation
Quick Specifications
| Weight |
68 lbs |
| Airflow |
7,500 CFM |
| Motor |
900 Watts / 1.25 HP / Direct Drive / TE / 115 Volt / 8.2 Amps |
| Fan diameter |
16” Diameter / Can Use a Standard 16” Tube |
| Controls |
Single Speed |
| Mobility |
Two wheels and two pads |
| Power Cord |
115 Volt / 12" Cord |
| Tilt |
Down 45° and straight up |
| Drive |
Direct |
| Clearance |
16" Optional swing arm mount for dock doors |
| Blade |
7" Steel / Aggressive Pitch / 1600 RPM |
| Optional Swing Arm |
Additional $245; not included |
| Power input |
120V |
| Phase |
Single phase |
| Speed control |
Single speed |
| Mounting |
Pedestal stand included |
| Model / SKU |
JETBLAST-16 |
Where This Fan Works Best
Best for
Warehouses, fabrication shops, service bays, manufacturing areas, barns, agricultural buildings, loading areas, and other hot or poorly circulated workspaces.
Plan before ordering
Verify ceiling height, mounting structure, electrical service, required coverage, and final fan placement.
Why Buy From AIMS Airflow?
Fan selection helpMatch fan size, airflow, mounting style, and controls to the space.
Installation coordinationCoordinate installation requirements and nationwide project support.
Support after the saleGet help with parts, service questions, and equipment support.
Questions about ceiling height, electrical input, mounting, or coverage? Contact AIMS Airflow before ordering.
Frequently asked questions
How much focused airflow does the JETBLAST-16 deliver?
The JETBLAST-16 is listed at 7500 CFM. Its tube-axial format concentrates airflow for spot cooling, ventilation, drying, and circulation in targeted work zones.
How is the JETBLAST-16 positioned in a work area?
The JETBLAST-16 includes pedestal stand included, allowing the fan to be placed where directed airflow is needed. Keep intake and discharge areas clear during use.
What power does the JETBLAST-16 require?
The JETBLAST-16 is listed for 120V, single phase, with single speed. Verify the circuit and cord requirements before use.
Installation planning noteVerify electrical requirements, mounting conditions, clearances, and final product configuration with AIMS Airflow before installation.
